Bronze
The only group we produce ourselves. We cast solid and hollow bars from Ø20 to Ø500 mm in tin, aluminium and lead bronze.
J-01 Product group
The only group
we cast ourselves
Bronze is the only material in our range that we do not buy in but produce ourselves. We cast it centrifugally, in permanent moulds and in sand, from Ø20 to Ø500 mm, in our own plant in Novi Sad.
Standard sizes are kept in stock. Non-standard sizes we can cast even within the same day, and for a breakdown, an overhaul or a missing spare part the lead time is 24 hours.
J-02 Product range
What we cast
and stock
Five product forms and eight subgroups — from the as-cast bar to the finished part, ready to fit.
Product forms
Bars
Solid, Ø20–500 mm
Tubes and hollow bars
Hollow, centrifugally cast
Bushings and sleeves
To drawing
Bearings
Fully finished
Castings
To pattern, sand cast
Full list
- Solid barsØ20 – Ø500 mmPermanent-mould casting, cut to length
- Hollow barsØ20 – Ø500 mmCentrifugal casting, coreless
- Bushingsto drawingTin and lead bronze
- Sleevesto drawingSevere operating conditions
- Plain bearingsto technical documentationFully finished
- GearsCuAl alloysHeavy loads
- Slide stripsCuPb alloysImpact loads
- Castings to patternsand castingComplex geometry
J-03 Product range tables

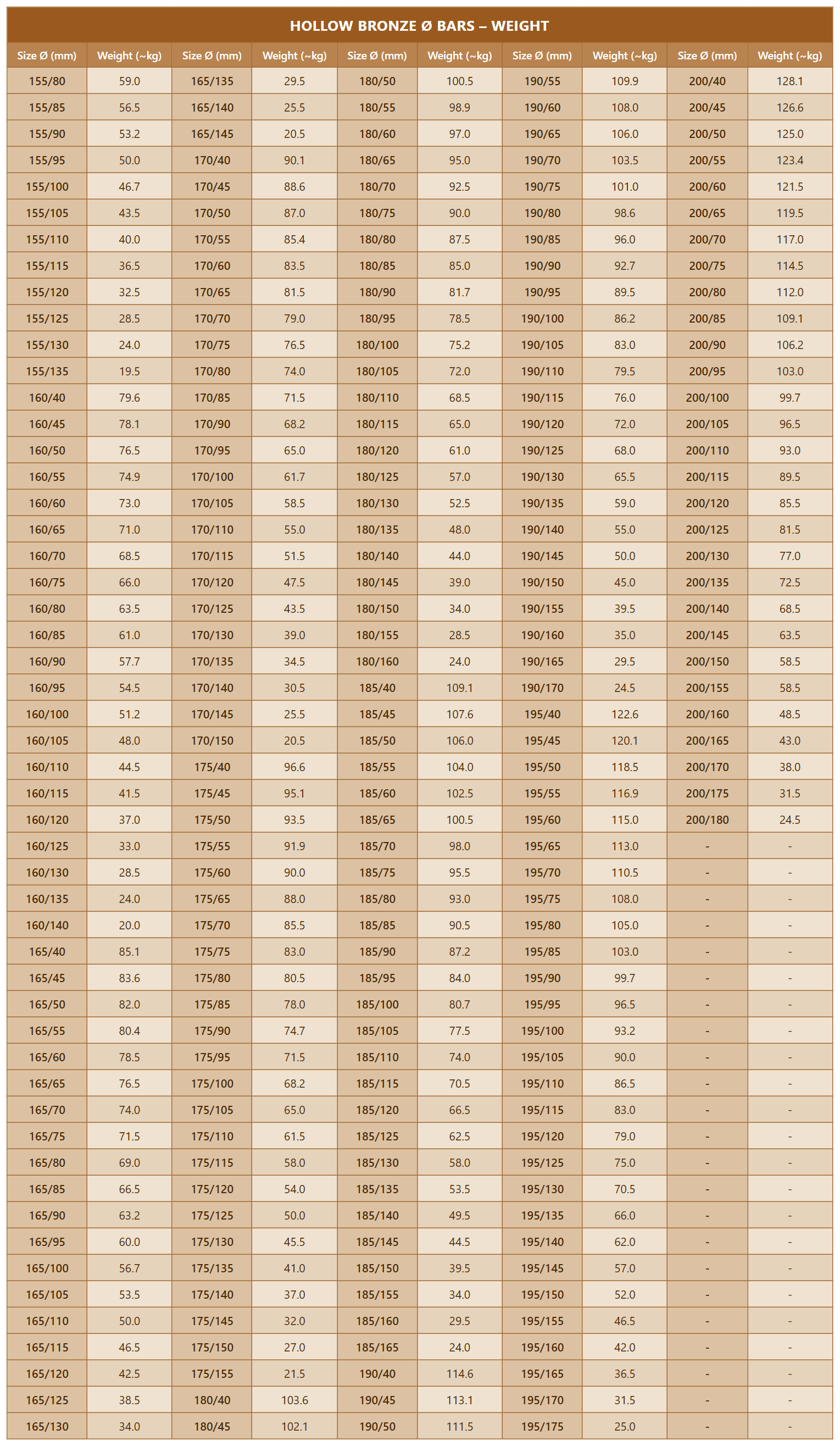

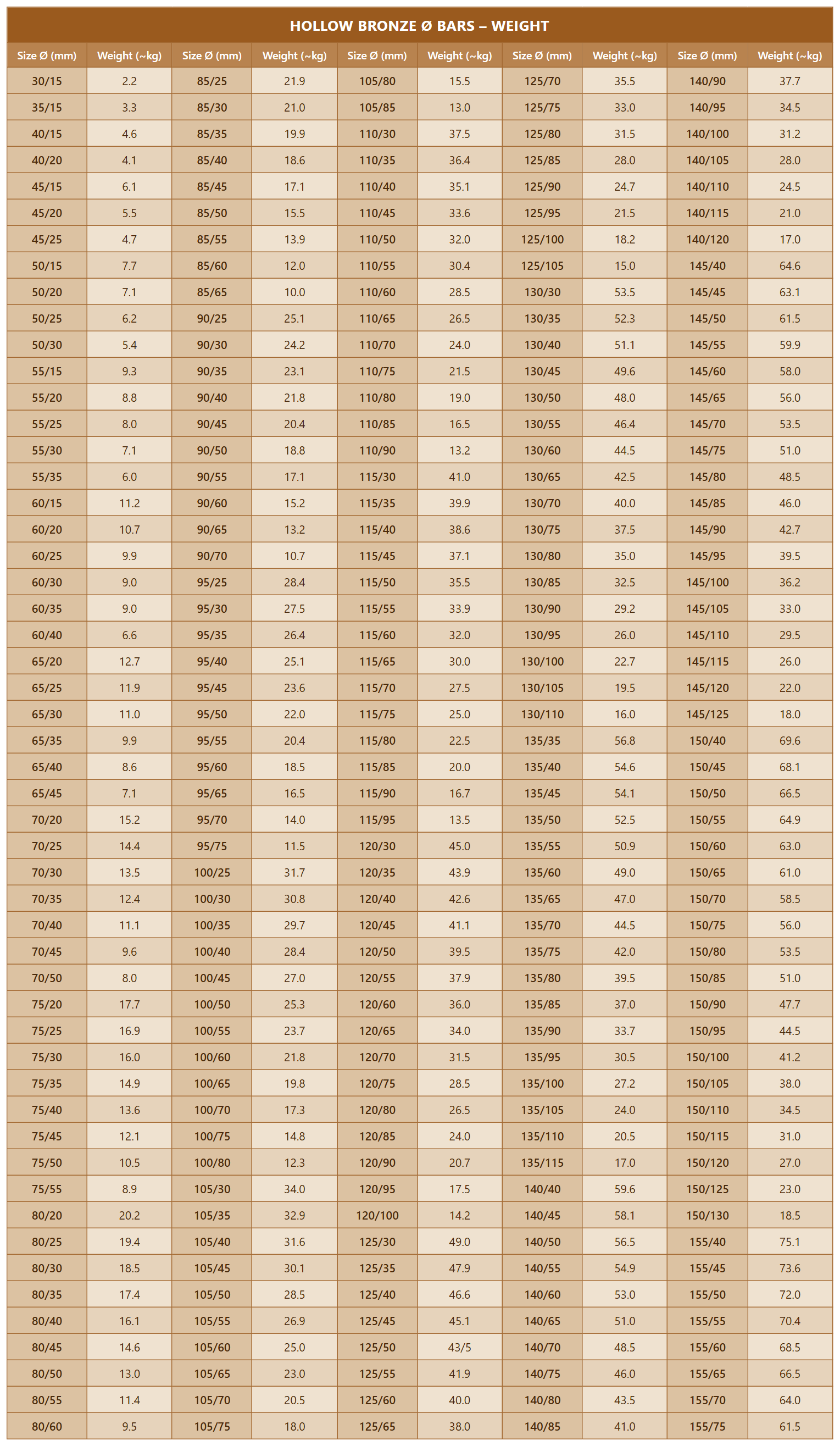

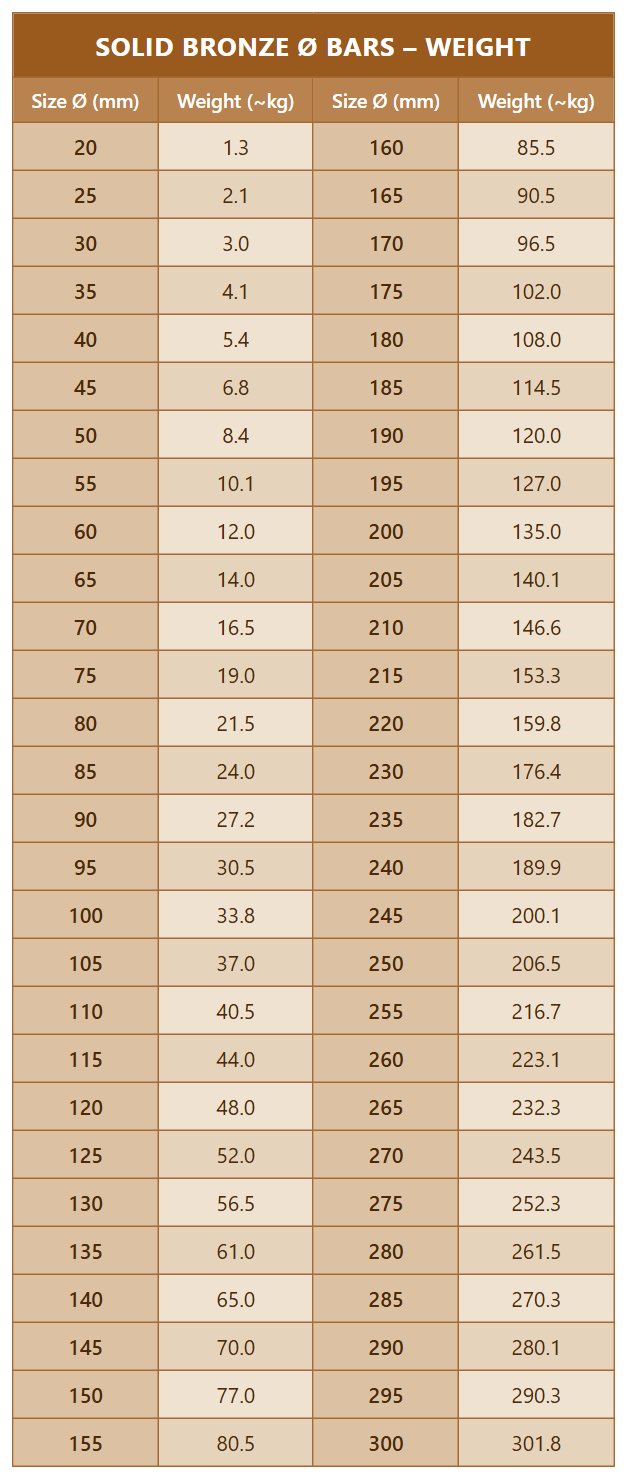

Product range tables
4 tables
Tables from our sales websites. Click a table to view it in full.
We can also send any table as a document on request — write to us.
J-04 Technical data

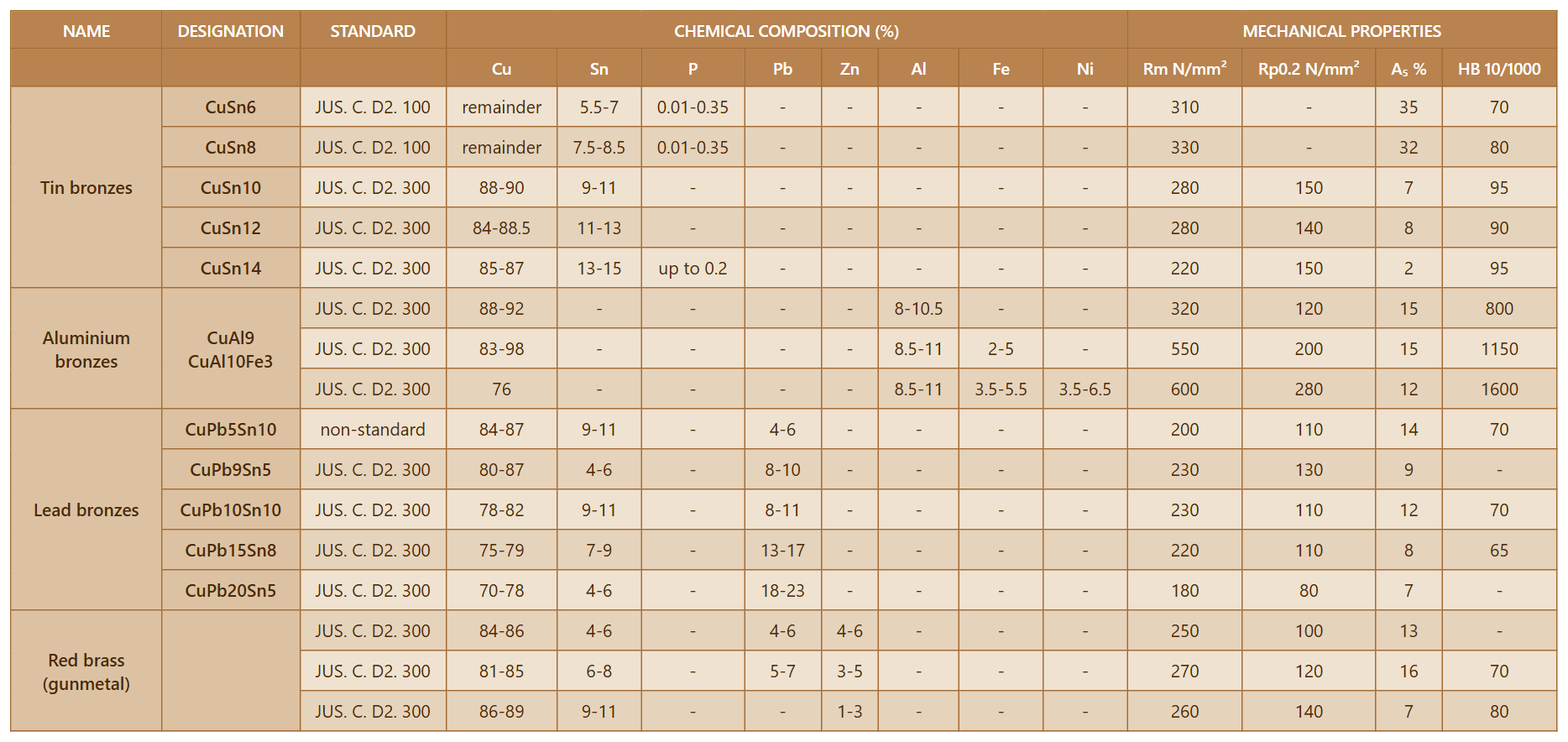

Alloys
and densities
| Family | Grades | Density | Typical use |
|---|---|---|---|
| Tin bronze | CuSn14 · CuSn12 · CuSn10 · CuSn8 · CuSn6 | 8.8 g/cm³ | Plain bearings, bushings, sleeves |
| Aluminium bronze | CuAl9 · CuAl10Fe3 · CuAl10Fe5Ni5 · CuAl11Fe6Ni5 | 7.6 g/cm³ | Gears, heavily loaded parts |
| Lead bronze | CuPb5Sn · CuPb10Sn10 · CuPb15Sn8 · CuPb20Sn5 · CuPb20 | 9.2 g/cm³ | Slide strips, shock loads |
| Special bronzes | to specification | — | To sample, drawing or specification |
| Delivery | Condition of the piece | Note |
|---|---|---|
| Rough-machined | Machining allowance 2 mm | Finish machining by the customer |
| To final size | Finished size to drawing | Tolerances to the customer's documentation |
| Fully finished | Bearing bushing, slide strip | Ready for installation |
| Breakdown and overhaul | Emergency response | Lead time 24 h |
Inspection and certification
We test and certify our alloys with an optical emission spectrometer. Each delivery comes with material quality documentation. Across more than 1,000 tonnes of bronze delivered, justified complaints amounted to 1.5%.
J-05 Weight calculator
How much does
your part weigh
The calculator is already set to tin bronze CuSn10 (thickness g/cm³). Choose the cross-section shape and enter the dimensions.
Cross-section
J-06 Applications
Where our
bronze works
Heavy machinery and production systems — wherever a sliding assembly has to withstand load, speed and less-than-ideal lubrication.
- Construction machineryexcavators · loadersBushings and sleeves in joints and cylinders
- Machine toolsslide stripsGuideways and sliding assemblies
- Energythermal and hydro power plantsBearings in pumps and turbines
- Food industrysugar factoriesBearings in conveyor lines
- AgriculturemachinerySpare parts and overhaul
- Cranes and pressesgearsAluminium bronze for heavy loads
- Defence industryto specificationMilitary and defence production
- Overhaulbreakdowns24-hour lead time in case of downtime
J-07 Other groups
J-08 Gallery
Gallery
41 photos
Our foundry and the bronze we deliver from it. Click an image to enlarge it — use the arrow keys to browse and Esc to close.
J-09 Inquiry
Send us a drawing, we'll send a quote
Size and alloy are enough. If you have no drawings, describe where the part goes — we will propose the alloy and the casting method.
