Copper
Tubes in three tempers, sheet and coil, bars, busbars, profiles, strip, wire, fittings and cast copper.
H-01 Product group
Conductor
and structural metal
We supply copper for both electrical applications and machining. Tubes are stocked in three tempers — hard, half-hard and soft — in coils and in lengths up to 6 m.
Fittings complement the core range, so you can source a complete installation in one place. Cast copper is supplied by arrangement.
H-02 Product range
What we keep
in stock
Five product forms and twelve subgroups, from installation pipes to busbars for power distribution.
Product forms
Tubes
Hard · half-hard · soft
Sheets
Flat sheet · coil
Bars
Round · hexagonal · square
Sections
Busbars · strip · flat bars
Wire and fittings
Various diameters
Full list
- Hard tubeslengths up to 6 mFor fixed installations
- Half-hard tubeslengths up to 6 mBalance of bendability and strength
- Soft tubesin coilsBendable without tools

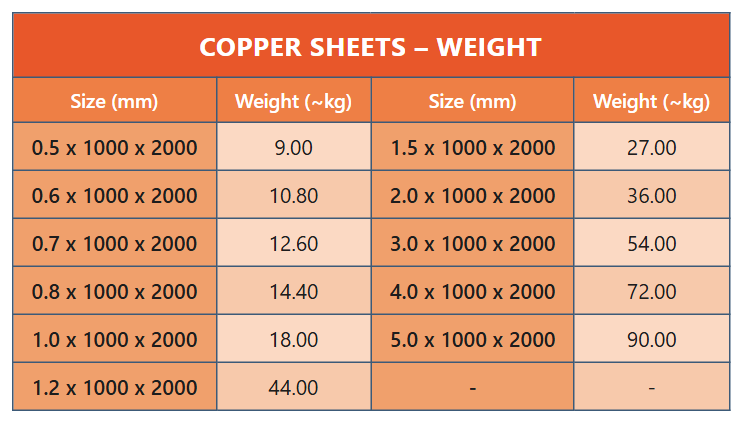

- Flat sheetsstandard sizesRoofing and fabricationTable: Flat sheets
- Sheet in coilscoilFor further processing

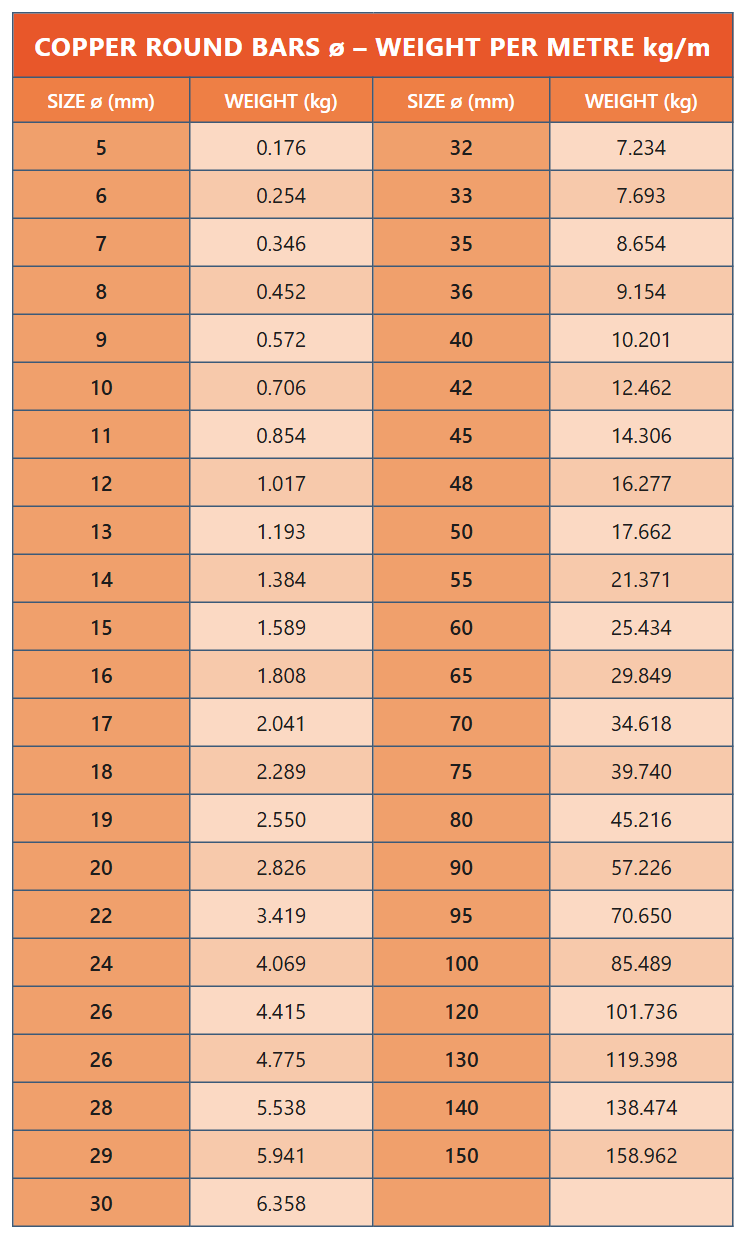

- Barsround · hexagonal · squareFor machiningTable: Bars

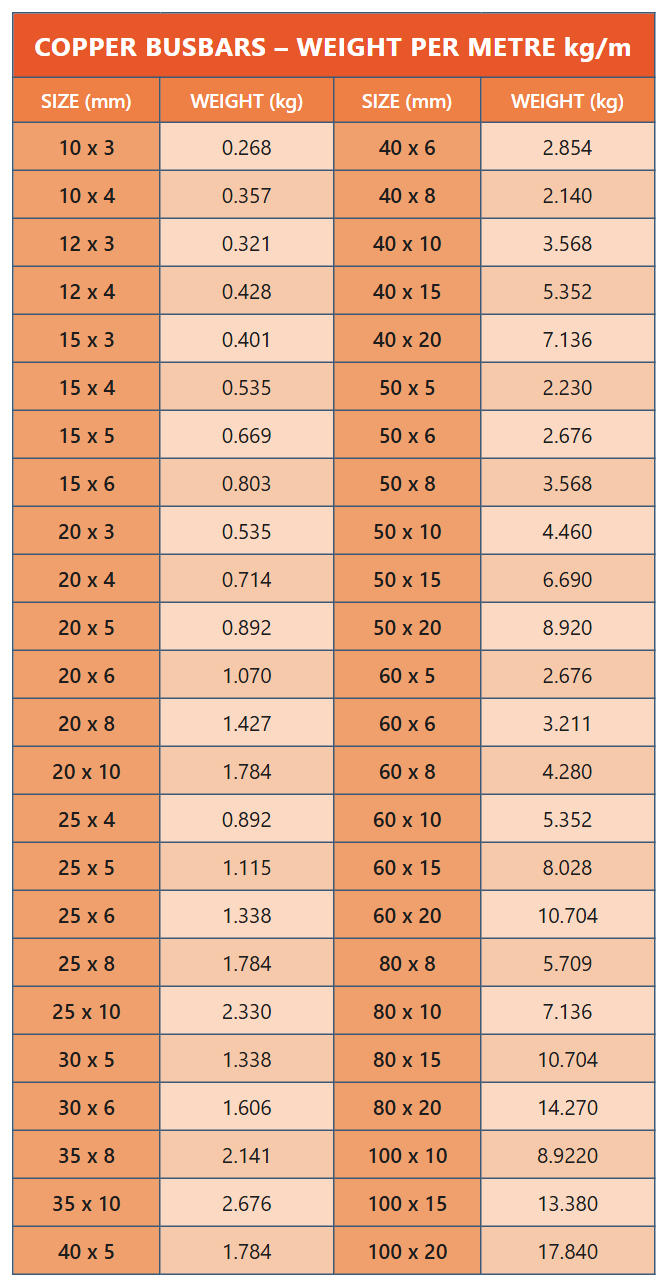

- Busbarsflat sectionsPower distribution and earthingTable: Busbars
- Sectionsvarious cross-sectionsOn request
- Stripvarious widthsEarthing and further processing
- Wirevarious diametersWindings and conductors
- Fittingsfor copper pipesElbows, couplings, reducers
- Cast copperby arrangementCastings on request
H-03 Product range tables

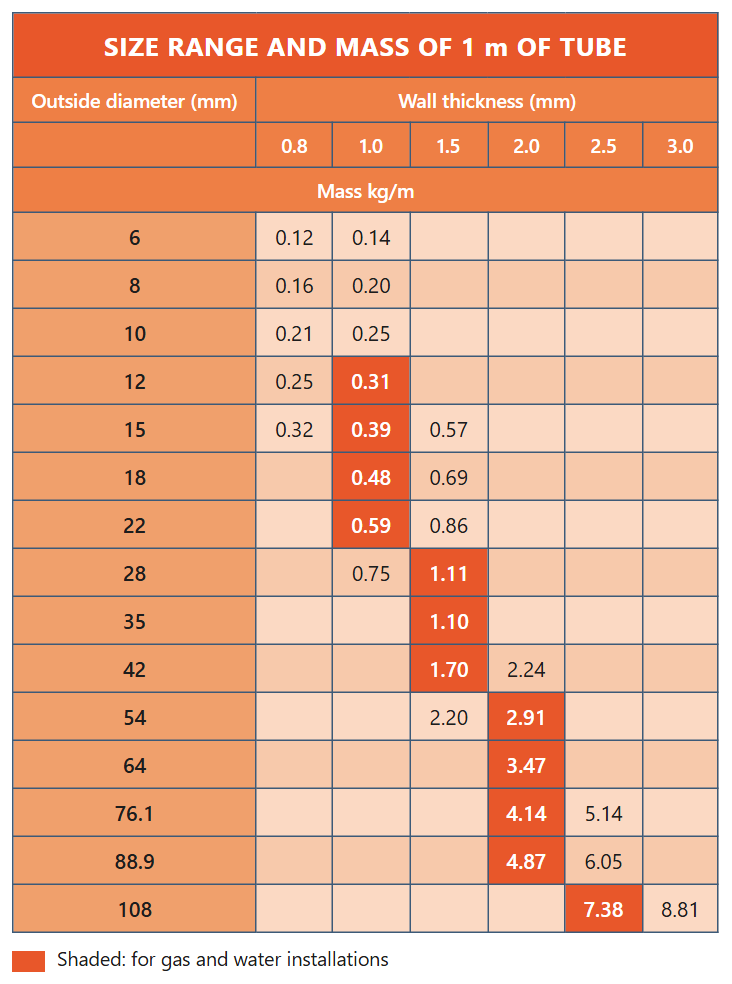

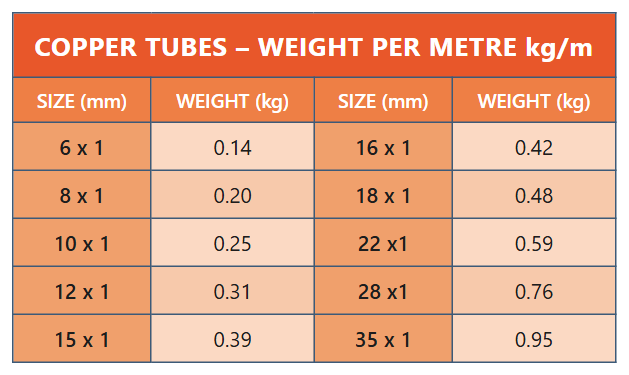

Product range tables
5 tables
Tables from our sales websites. Click a table to view it in full.
We can also send any table as a document on request — write to us.
H-04 Technical data
Figures that go
into the calculation
| Detail | Value | Note |
|---|---|---|
| Density | 8.9 g/cm³ | For calculating the mass of a cut piece |
| Tubes — temper | hard, half-hard, soft | Chosen according to the installation method |
| Tubes — delivery form | coil and lengths up to 6 m | Soft tubes are normally supplied in coils |
| Sheets | flat sheet and coil | Cutting to size by arrangement |
| Bars | round, hexagonal, square | For machining |
H-05 Weight calculator
How much does
your part weigh
The calculator is already set to copper (thickness g/cm³). Choose the cross-section shape and enter the dimensions.
Cross-section
H-06 Applications
Who buys
copper
Electrical trades, installers, roofers and machine shops.
- Power engineeringbusbars and stripPower distribution, earthing
- Installationspipes and fittingsWater, heating, gas installations
- ConstructionsheetsRoofs, flashings, gutters
- MachiningbarsParts requiring good conductivity
H-07 Other groups
H-08 Gallery
Gallery
25 photos
Copper from our stock — sheets, tubes, bars and coils. Click an image to enlarge it — use the arrow keys to browse and Esc to close.
H-09 Inquiry
Give us the cross-section and length, we'll send a quotation
For tubes, state the diameter, wall thickness and temper. For sheets, the format and thickness.
